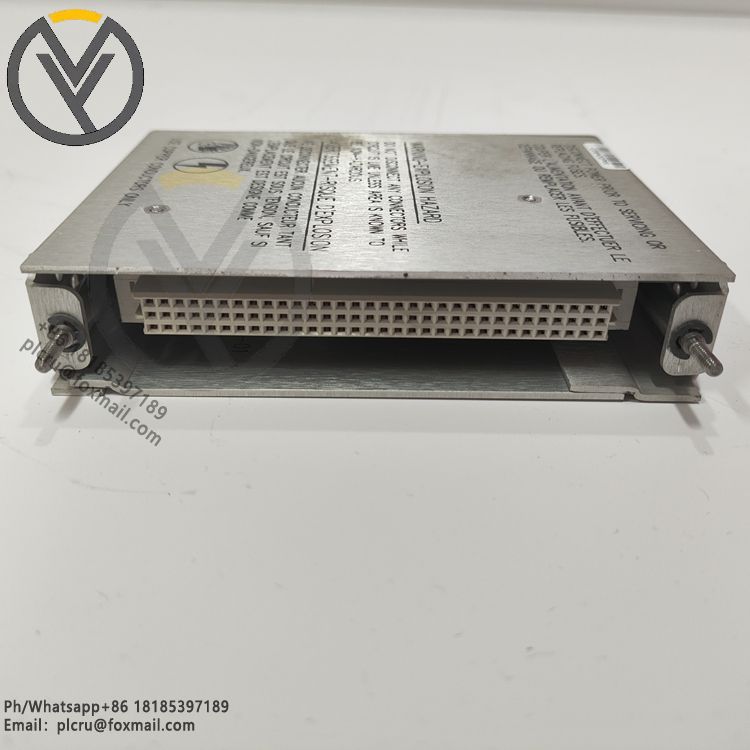

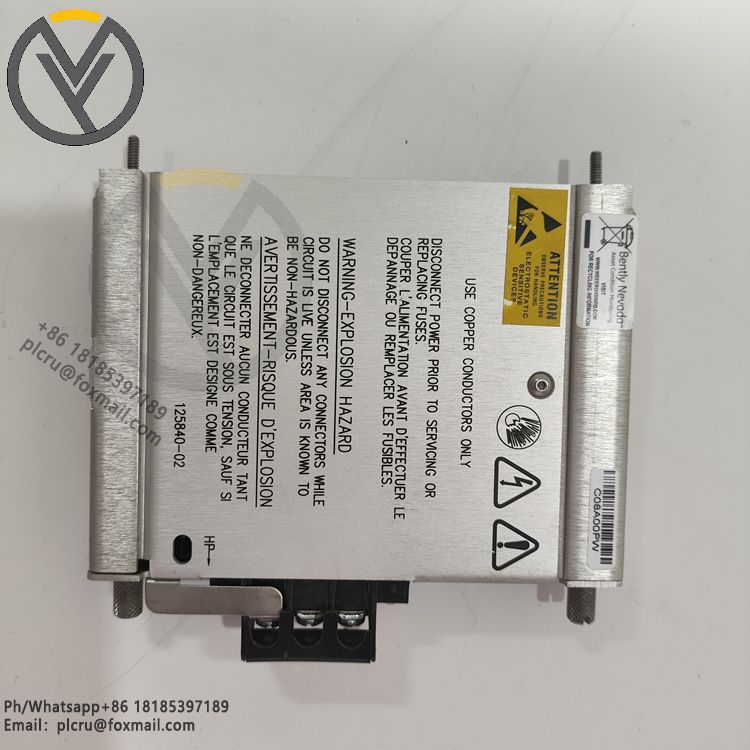

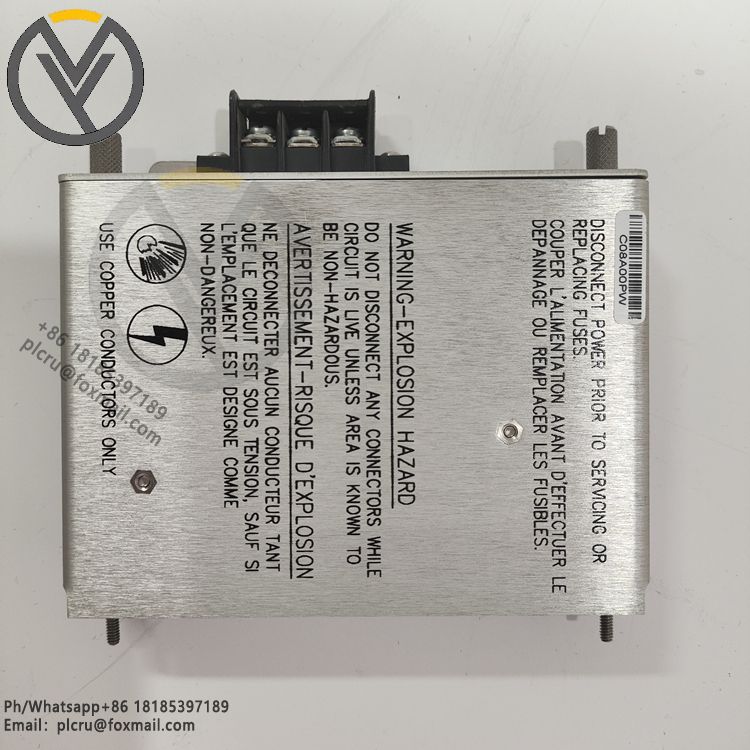

125840-02 | Bently Nevada | 3500/15 Low Voltage AC Power Entry Module

Bently Nevada 3500/15 125840-02 is a low-voltage AC power input module, which is an important part of the 3500 monitoring system. It is mainly used to convert external low-voltage AC power into the DC voltage required by the system to power the entire system. The relevant introduction is as follows:

Functional characteristics:

Power conversion and distribution: Convert external low-voltage AC power into DC voltage to provide stable power for other modules in the system.

Wide voltage input: Supports an input voltage range of 85 to 265VAC, which can adapt to power standards in different regions.

Overload protection: With overload protection function, it can prevent equipment damage caused by overload and ensure safe operation of the system.

Status indication: Usually there is a status indicator, such as "Supply OK LED", to display the working status of the power module, which is convenient for users to monitor and maintain.

Physical characteristics:

Size: It is a half-height module with a size of approximately 140mm×80mm×50mm, which can be installed in a specially designed slot on the left side of the 3500 system rack.

Weight: about 0.5kg, light weight, easy to install and carry.

Technical parameters:

Input frequency: 47 to 63Hz.

Power consumption: maximum power consumption is about 10W, typical power consumption is 3.5W.

Operating temperature range: -20℃ to + 60℃, can work stably in harsh industrial environments.

Relay type: single-pole double-throw (SPDT) relay, maximum switching current is 5A, maximum switching voltage is 250VAC.

Application field: This module is widely used in power, oil and gas and other industries. It can be used in the monitoring systems of generator sets, steam turbines, compressors, pumps and other equipment to provide stable power supply for these systems and ensure the normal operation of equipment status monitoring.
