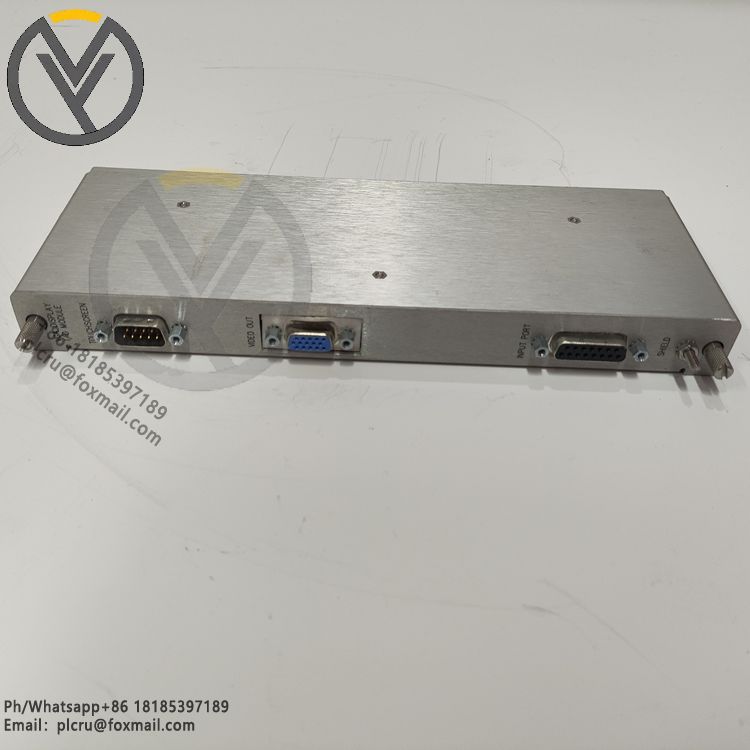

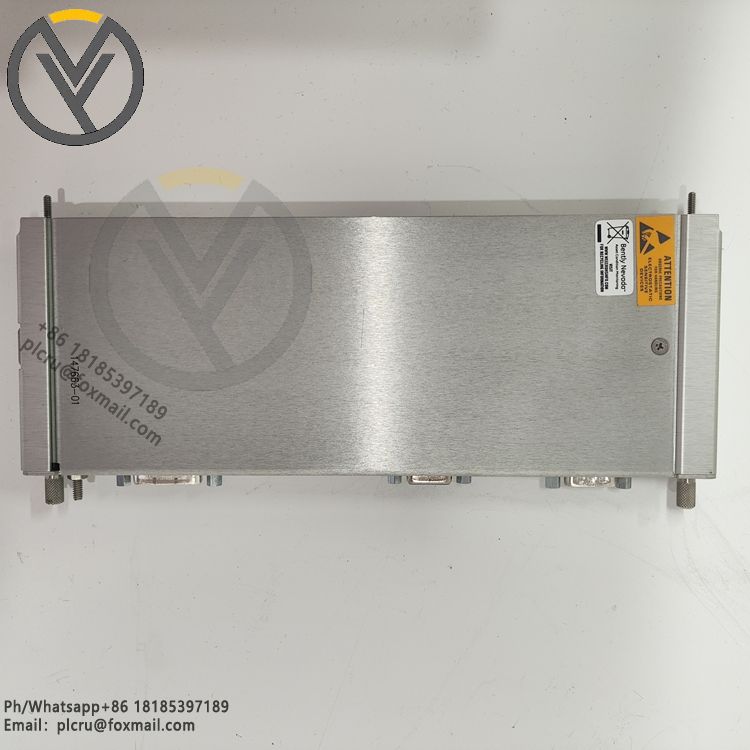

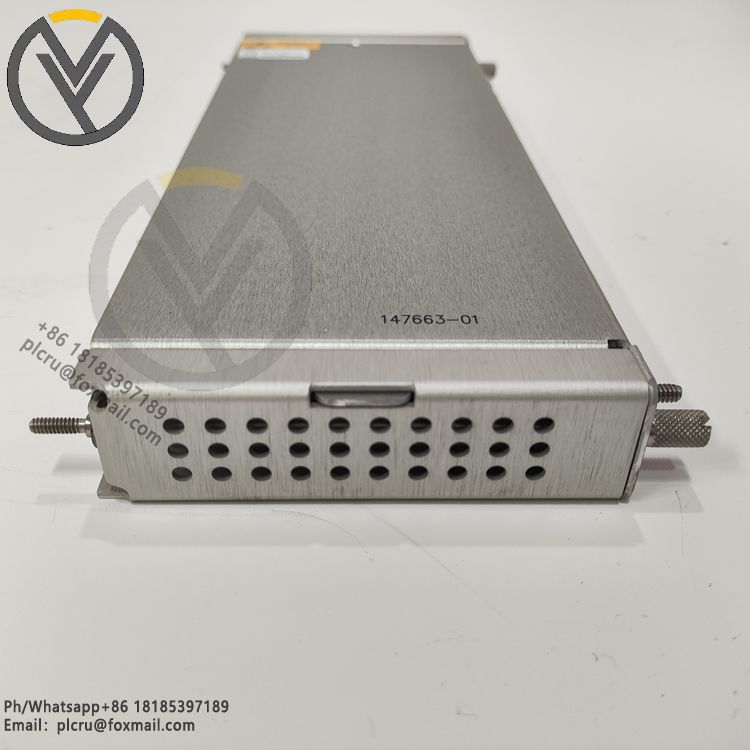

Bently Nevada l3500/94 147663-01 | I/O Module Monitoring System

Bently Nevada 3500/94 147663-01 is a VGA display I/O module, which is part of the 3500 monitoring system. It is mainly used for equipment status display and monitoring and can be widely used in steel, electricity, metallurgy and other industrial fields. The relevant introduction is as follows:

Display function: It has VGA display function and supports high-resolution graphic display, which is convenient for users to intuitively view and monitor equipment status, and helps operators to timely understand the equipment operation status, perform fault diagnosis and maintenance.

I/O interface: It provides a variety of input and output interfaces, which can be connected to various sensors and actuators to realize data acquisition and control. It can transmit the equipment operation data collected by the sensor to the system for processing, and can receive instructions from the control system and control the actuator action.

Communication capability: It is equipped with RS-232 port, which can be used for SNP slave, Modbus RTU slave or serial input/output commands, which is convenient for communication with other devices or systems, data transmission and interaction, and system integration and remote monitoring.

System compatibility: Generally compatible with Bently Nevada's 3500 monitoring system, it can be seamlessly integrated into the existing monitoring system and can work with other modules of the 3500 series to improve the performance and reliability of the entire system.

Self-monitoring function: It supports the self-monitoring function of itself and the rack, which can timely detect problems with the module itself or the rack, help improve the stability and reliability of the system and reduce the probability of failure.

Configuration protection: The system configuration is protected by the key lock switch and two-level software password on the front of the module to prevent unauthorized personnel from changing or tampering with the configuration settings, ensuring the stability and security of system operation.

Reset function: The front panel is equipped with a system reset switch to clear any latched alarms and unready status in the system. At the same time, the backplane connection can realize remote activation of system reset, trip multiple and rack alarm inhibition functions, which is convenient for operators to perform system maintenance and troubleshooting.
