ABB PP846A 3BSE042238R2 Panel 800 10.4" INDUSTRIAL-IT HMI OPERATOR PANEL
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
I. Basic Product InformationThis model belongs to the ABB Panel800 series indust
I. Basic Product Information

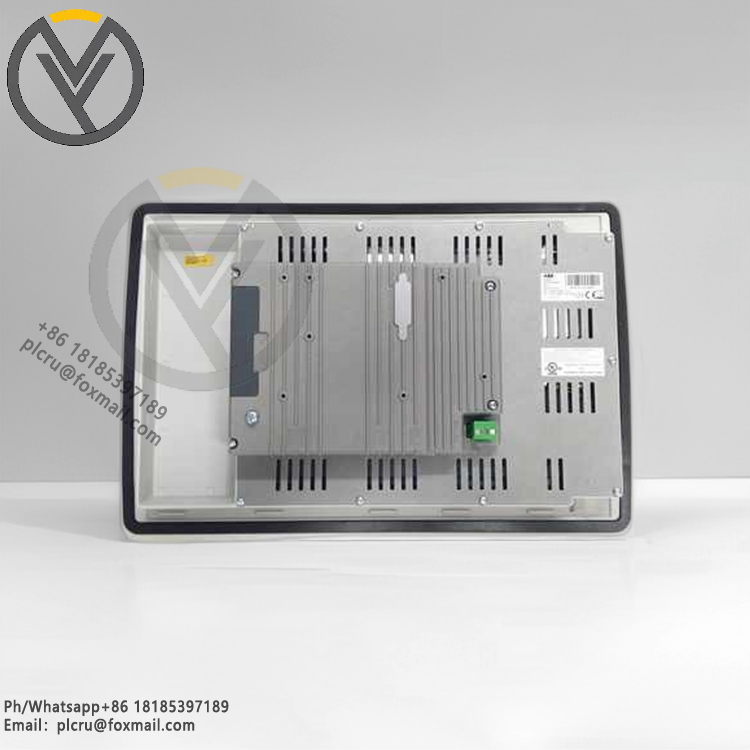

This model belongs to the ABB Panel800 series industrial IT HMI touchscreen, original order code 3BSE042238R2, model PP846A. It is natively compatible with the ABB 800xA distributed control system and is primarily used for on-site monitoring in power, chemical, water treatment, and paper production lines. Production has ceased, and only spare parts remain. The entire unit features a die-cast aluminum alloy casing and an embedded perforated panel mounting structure. It is a hybrid operation model combining buttons and resistive touch, with a row of customizable hard-function buttons integrated on the side.
II. Display and Touch Parameters
Screen Specifications: 10.4-inch CCFL backlit TFT color LCD screen, physical resolution 800×600, 64K colors, nominal backlight lifespan greater than 50,000 hours at 25 degrees Celsius; equipped with a four-wire resistive touch panel, supporting finger and industrial glove operation; the screen surface is resistant to common industrial oils and weak acids. The left side of the unit features multiple programmable physical shortcut keys, which can be bound to the configuration software for quick commands such as start/stop, screen switching, and parameter retrieval.
III. Electrical Power Supply Parameters: Rated power supply is DC 24V, with a power supply capacitor allowable fluctuation range of 20V to 30V. The normal operating current is 0.5A, with a peak maximum of 1A. The total power consumption is approximately 12W. The unit has built-in reverse connection protection and surge protection circuits, compatible with the DC power supply circuits of industrial control cabinets.

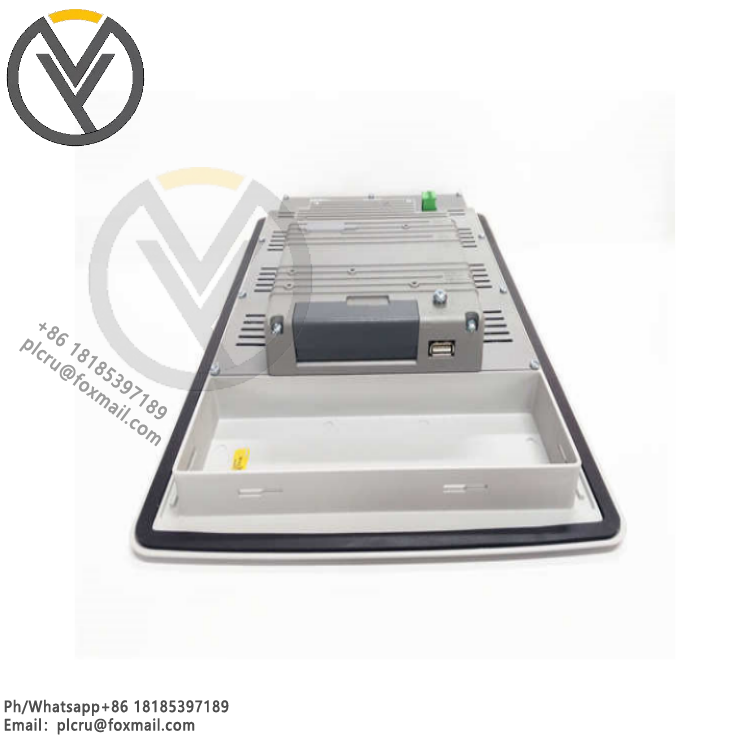

IV. Hardware Interface Configuration: The rear of the unit integrates multiple communication and peripheral interfaces, including a shielded RJ45 industrial Ethernet port, a 9-pin RS232 serial port, a 25-pin RS422/RS485 composite serial port, Type A USB Host, and Type B USB Device interfaces. It also comes standard with a CF card slot compatible with Type I and Type II memory cards. The CF card is used for engineering program backup, recipe data storage, and firmware upgrades. The communication protocols natively support ABB proprietary bus, Modbus RTU/TCP, and PROFIBUS, allowing direct connection to ABB AC800M controllers and third-party PLC devices.
V. Environmental and Protection Specifications: The front panel of the operating panel has an IP66 protection rating, while the rear wiring cavity has an IP20 rating. For vertical cabinet installation, the operating temperature range is 0℃ to 50℃; for horizontal installation, the operating temperature range is 0℃ to 40℃. The product can withstand storage temperatures from -20℃ to 70℃, and the relative humidity of the operating environment is 5% to 85%, operating under non-condensing conditions. It can operate continuously for extended periods in dusty, moisture-filled, and slightly oily workshops.
VI. Structural and Weight Data: The overall front panel dimensions are 382mm × 252mm, the cabinet embedding depth is 58mm, and the net weight is 2.5kg. The opening dimensions conform to the Panel800 standard opening specifications, and the openings are compatible with PP845/PP846 models of the same size, facilitating on-site equipment replacement and modification.
VII. Software Configuration and Functionality The engineering screen configuration relies on ABB Panel Builder dedicated configuration software, developed based on the .NET open architecture. It supports multilingual screen editing, real-time trend curves, historical alarm archiving, recipe management, user hierarchical permission control, and operation audit log recording. It has a built-in vector library and industry-standard controls, supports dynamic screens, pop-up menus, and dynamic display of process values, and can remotely download programs and upload fault data via Ethernet.
