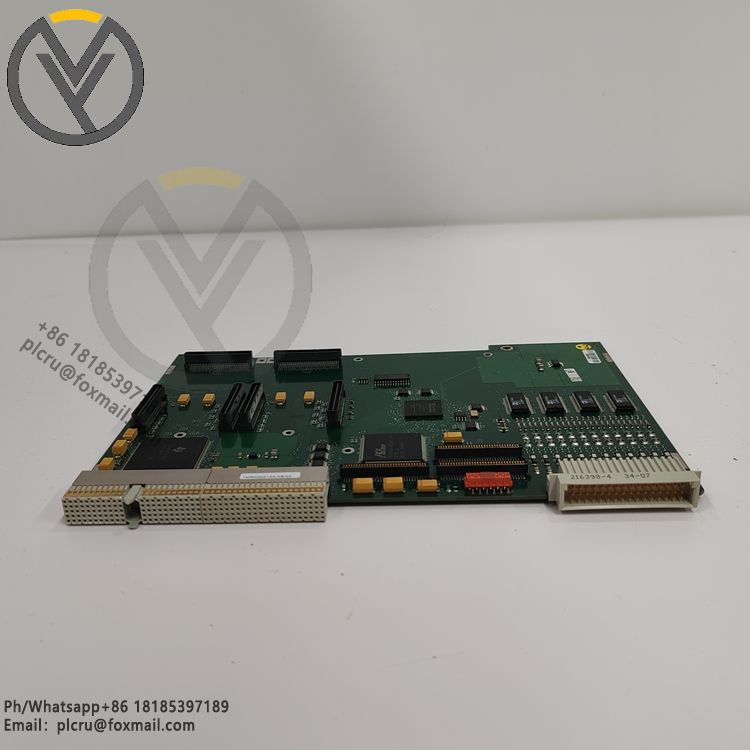

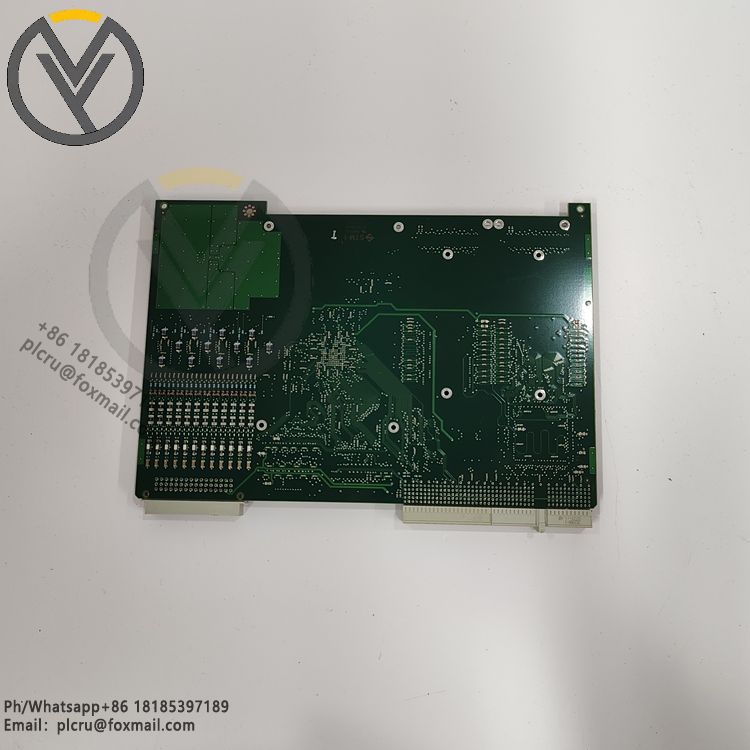

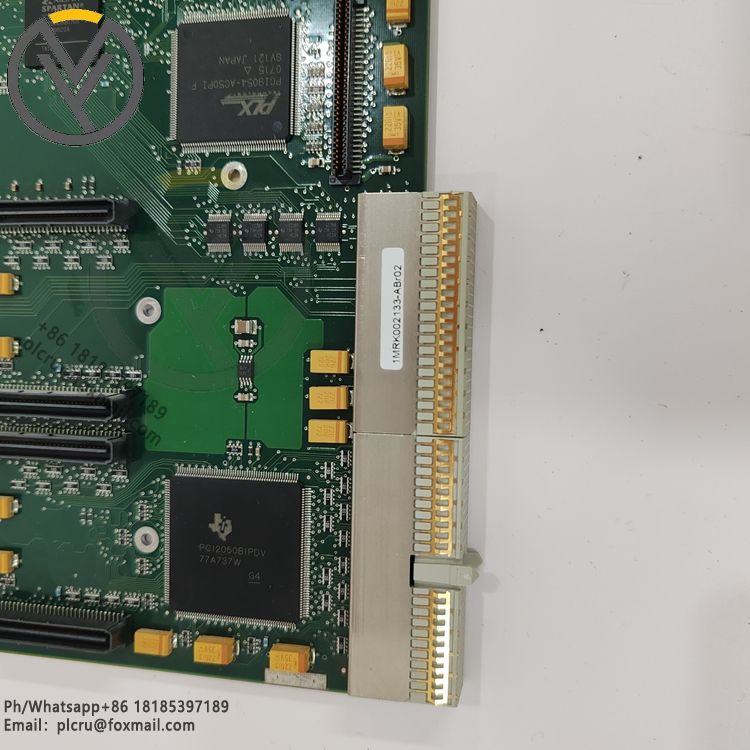

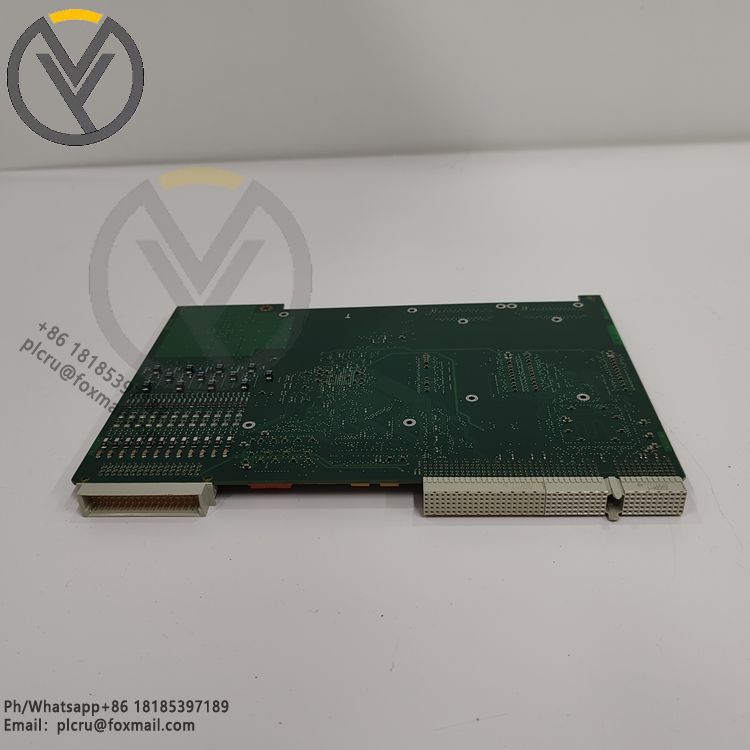

ABB 1MRK002133-ABr02 Analog digital module

ABB 1MRK002133-ABr02 is a high-performance analog digital module, commonly used in industrial automation. Here is a detailed introduction:

Basic parameters:

Number of channels: 2 channels.

ADC resolution: 16 bits.

Sampling rate: up to 100ksps.

Input range: supports ±10V, ±5V or ±2.5V.

PGA gain: can be set to 1, 2, 4, 8 or 16.

Voltage reference: 2.5V.

Temperature sensor range: -40°C to + 85°C.

Time synchronization accuracy: ±100ns.

Power supply: 24VDC.

Power consumption: 5W.

Dimensions: 120x80x30mm.

Weight: 200g.

Features:

Compact design: With compact design, it saves space and is suitable for integration into equipment and machinery with limited space.

Strong compatibility: Compatible with a variety of motors, including AC servo motors, brushless DC motors and stepper motors, with flexibility in motor selection.

High precision: Provides excellent accuracy and precision in motion control, ensuring smooth and synchronous operation of mechanical equipment.

Easy operation: Provides a user-friendly interface for easy configuration and operation, which can reduce setup time and simplify maintenance procedures.

Application areas: Can be seamlessly integrated into motion control systems, accurately and efficiently control various motors and actuators, and is widely used in industrial automation fields, such as robotic systems, servo systems, etc.
