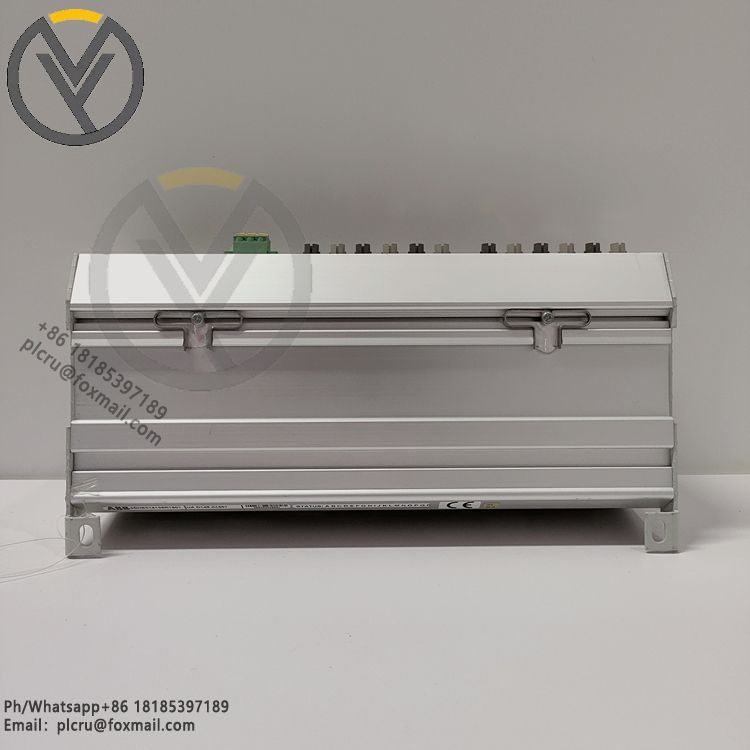

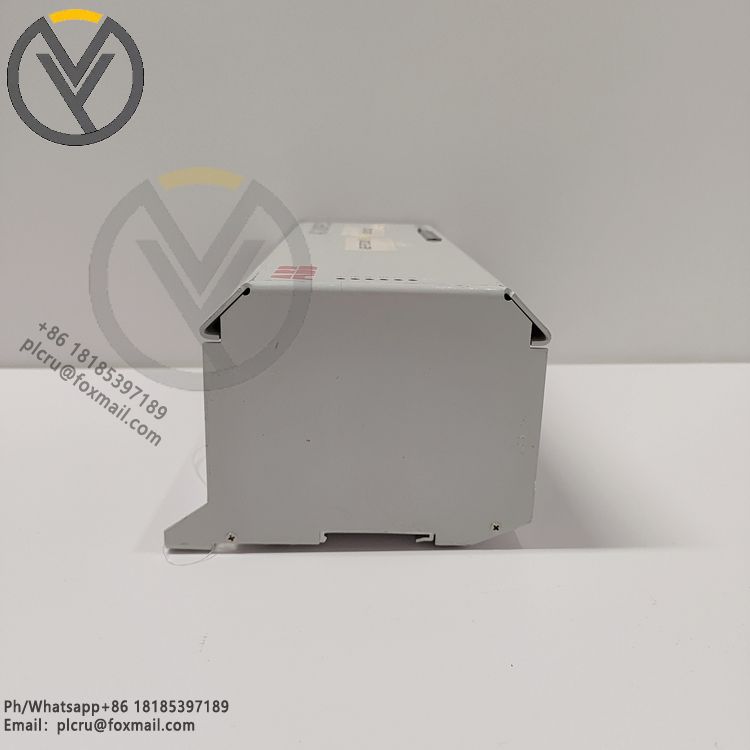

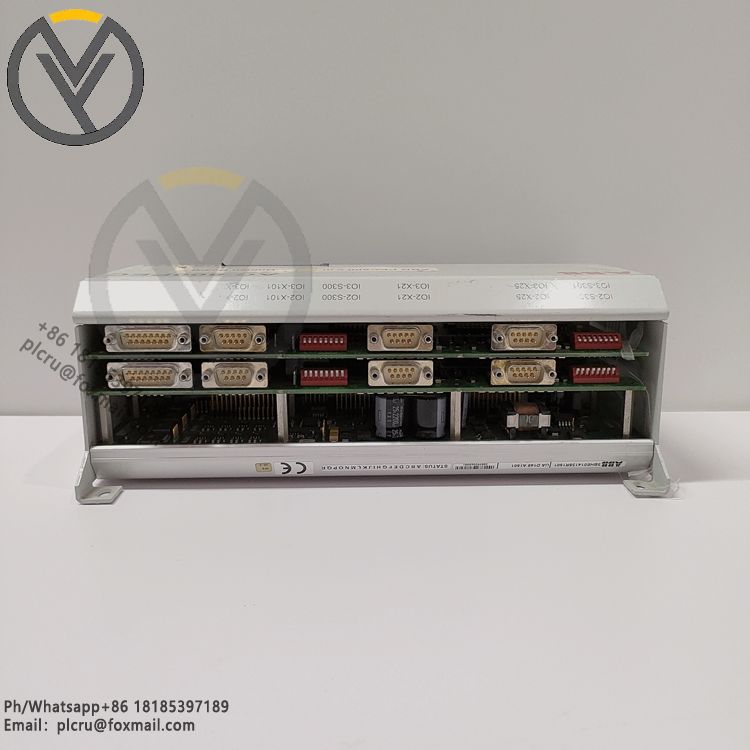

ABB UAD149A1501 3BHE014135R1501 Excitation system controller

ABB UAD149A1501 3BHE014135R1501 is a digital controller module, which belongs to ABB's 800xa control system. It is mainly used for excitation control of generators in power systems to ensure stable operation of generators, maintain voltage stability and reasonably distribute reactive power. The relevant introduction is as follows:

Functional characteristics: It has functions such as input and output management, signal processing, and communication with field equipment. It can accurately collect and process the voltage, current and other signals of the generator, and realize precise adjustment of the excitation current through fast control algorithms.

Communication protocol: It supports multiple communication protocols, depending on the system configuration. Common ones include Modbus, Profibus, etc., which are convenient for data interaction and integration with other devices or systems.

Power supply voltage: It is usually powered by 24V DC power supply, but the specific details still need to refer to the detailed documents.

Operating temperature: The standard operating temperature range is generally - 20°C to + 60°C, which can adapt to certain industrial environment temperature changes.

Installation method: supports DIN rail installation or panel installation, with flexible installation methods that can be selected according to actual application scenarios.

Modular design: The modular design is easy to upgrade and maintain, reducing maintenance costs and difficulties. At the same time, it has a built-in diagnostic function that can monitor the system status in real time and troubleshoot faults, which helps improve the reliability and maintainability of the system.
