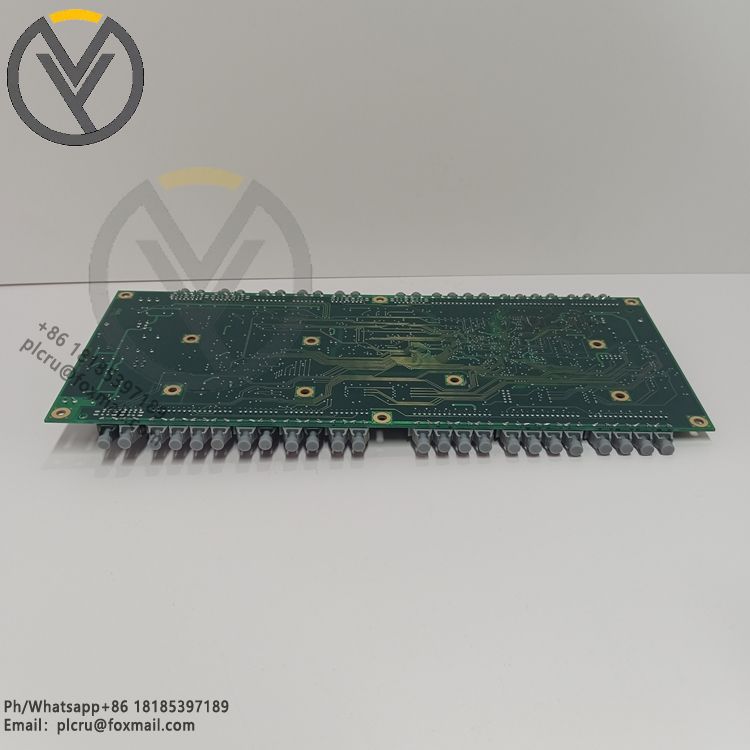

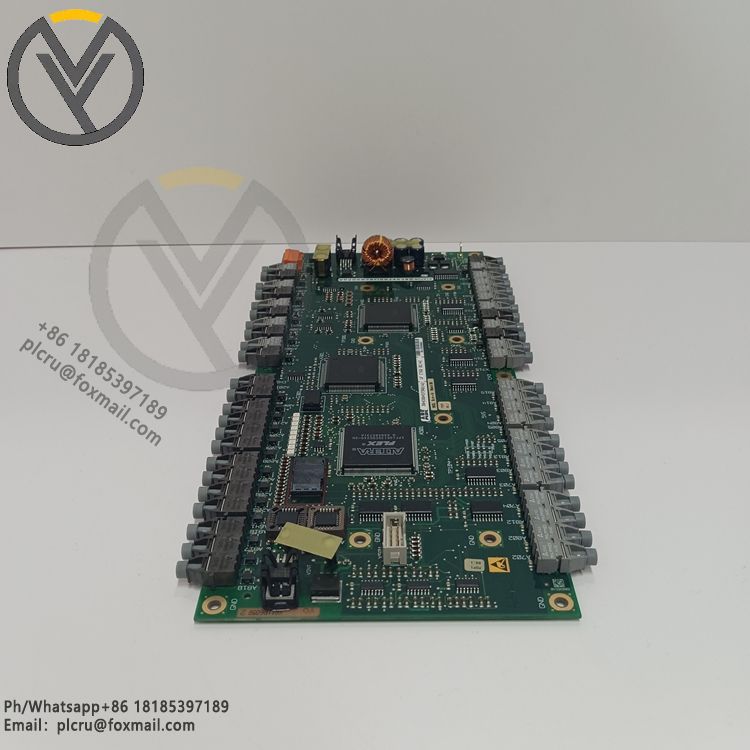

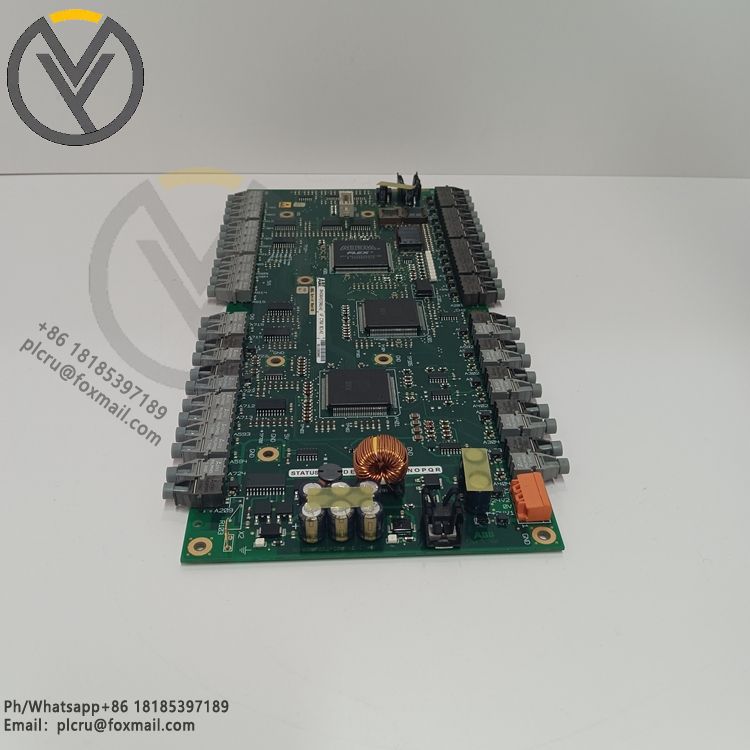

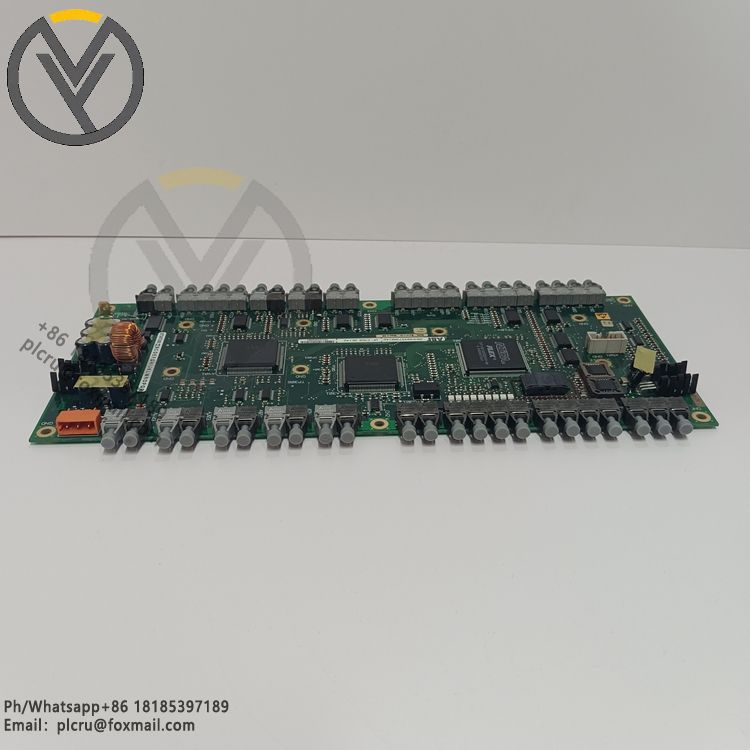

ABB UF C760 BE142 3BHE004573R0142 | Interface board

ABB UFC760BE142 3BHE004573R0142 is a high-voltage interface module PCB board, mainly used in ABB's automation and control systems. The relevant introduction is as follows:

Functional characteristics:

High-voltage signal processing: Designed for high-voltage environments, it can withstand high-voltage signals, process high-voltage signals, realize communication with other devices, and may also involve the conversion of analog signals and digital signals.

Distance protection function: It can be used in power line and cable protection in complex network configurations, such as double circuits, parallel lines, etc. Some areas can send phase selection signals, such as start and trip, which can be used for fault protection of power systems.

Analog input and output: It has analog input and output functions, can process analog signals, realize signal acquisition, conversion and output, and is suitable for application scenarios that require precise control.

CNC function: It may integrate digital control algorithms, which can achieve high-precision position control, speed control, etc., to meet the complex control requirements in industrial automation systems.

Error detection and alarm: It may have error detection and alarm functions, which can monitor abnormal conditions during system operation and send alarm signals in time.

Technical parameters:

Working temperature: -10℃~55℃ under LED display state, storage temperature -20℃~70℃.

Relative humidity: ≤93% RH, no condensation, no corrosive gas place.

Altitude: ≤2500m.

Communication protocol: support Modbus, Profibus and other protocols.

Protection level: IP54.

Product advantages:

High reliability: industrial-grade design to ensure stable operation in harsh environments.

Strong compatibility: compatible with other automation products of ABB, easy to integrate into ABB's control system, such as Advant Controller 800XA and related systems.

Easy to maintain: modular design, easy to install and maintain.
