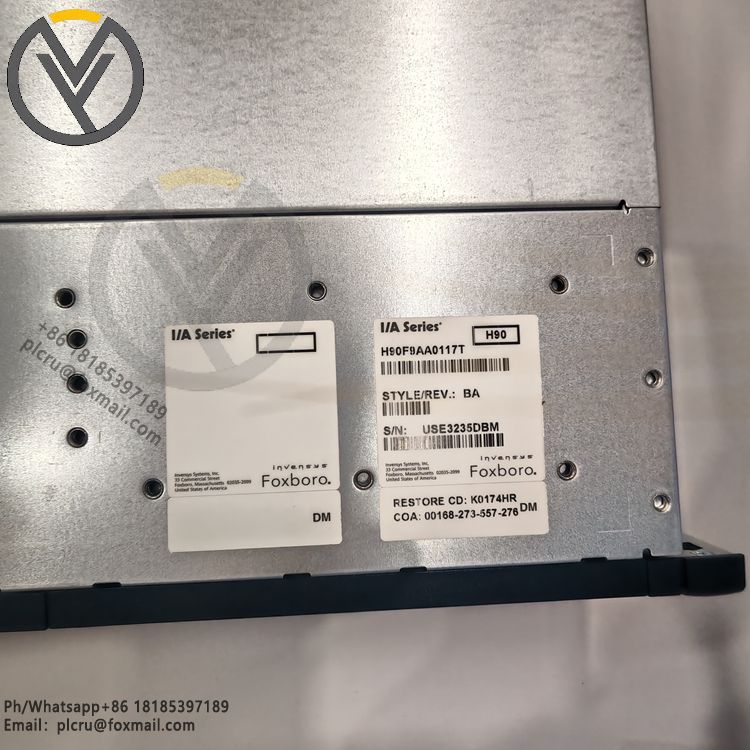

The FOXBORO H90 is a workstation server for industrial automation control. H90C9AA0117S may be its specific part number or configuration identifier.

The FOXBORO H90 server is a product of Foxboro Corporation, now part of Schneider Electric. The H90 server is primarily designed to support the EcoStruxure Foxboro DCS (distributed control system). It is a multifunctional server running the Windows Server 2008 R2 operating system, supporting data acquisition, processing, file serving, and graphical and text display.

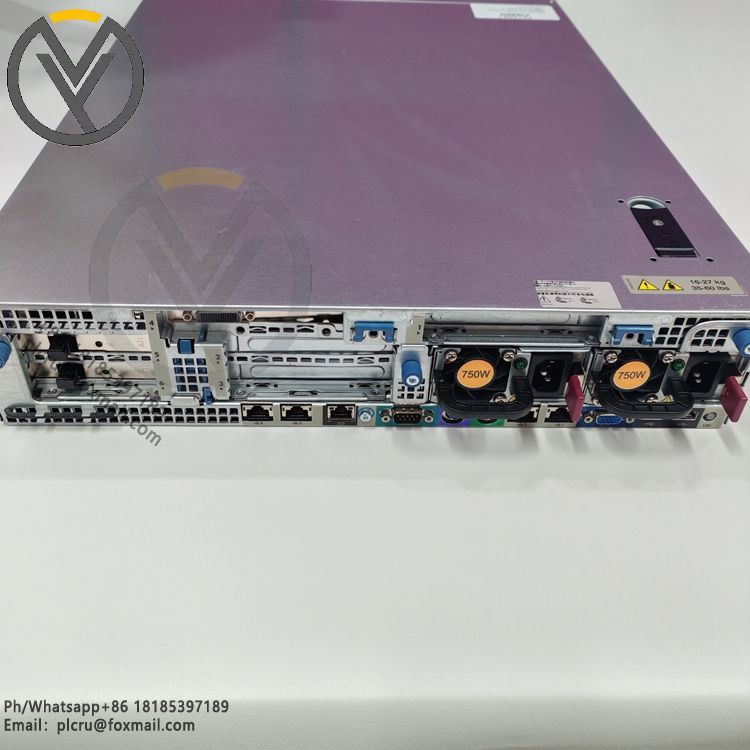

According to relevant information, the H90 server is equipped with an Intel Xeon processor and 16GB of DDR4 registered memory. It has one internal system disk drive, up to eight optional internal expansion disk drives, and a SATA CD-RW/DVD drive. The server can connect up to four video displays, such as 23-inch LCD USB touchscreen displays or 23-inch LCD monitors, and provides multiple USB ports for connecting external devices such as mice and keyboards. Additionally, it can connect to the Foxboro DCS control network via dual Ethernet PCIe cards, and can simultaneously connect to one or more common Ethernet-based information networks via four integrated Ethernet ports.
