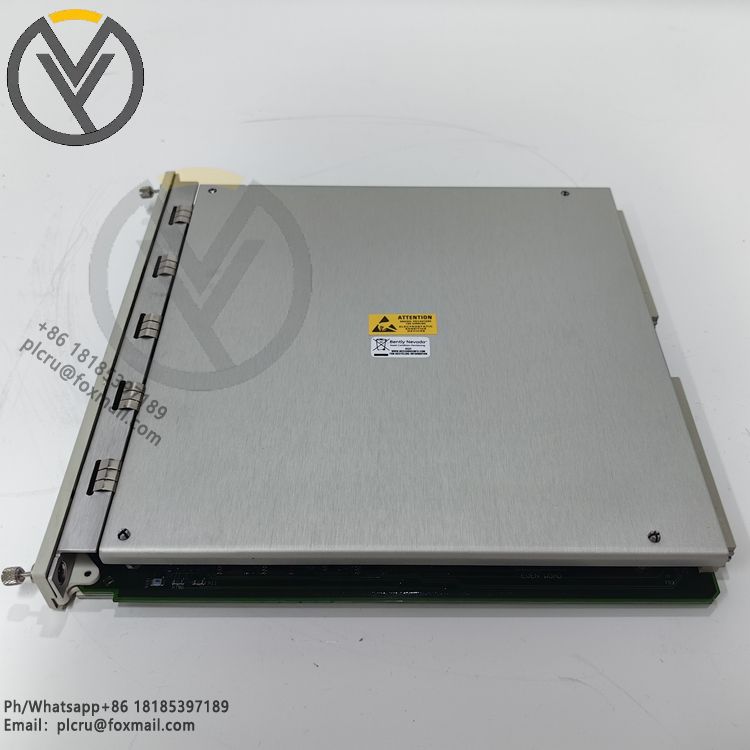

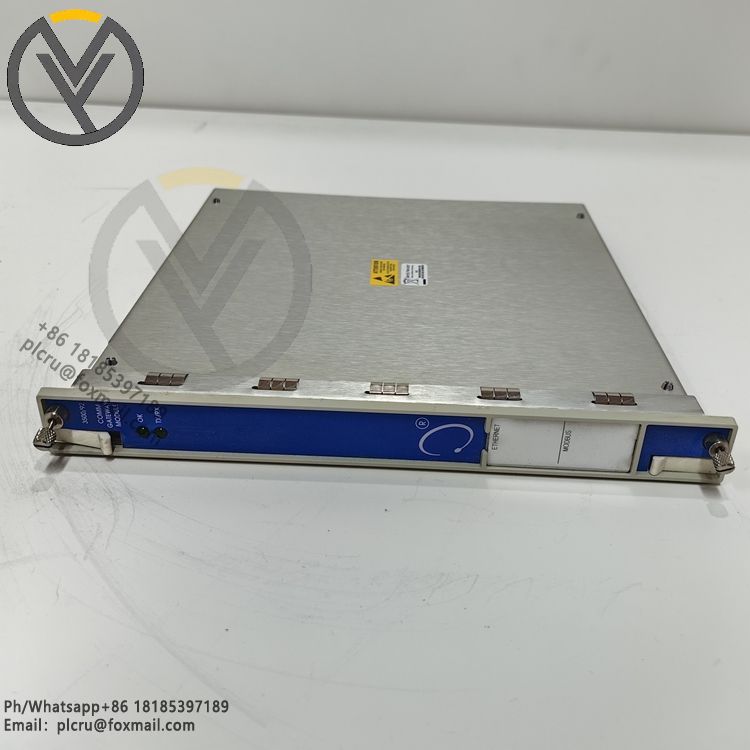

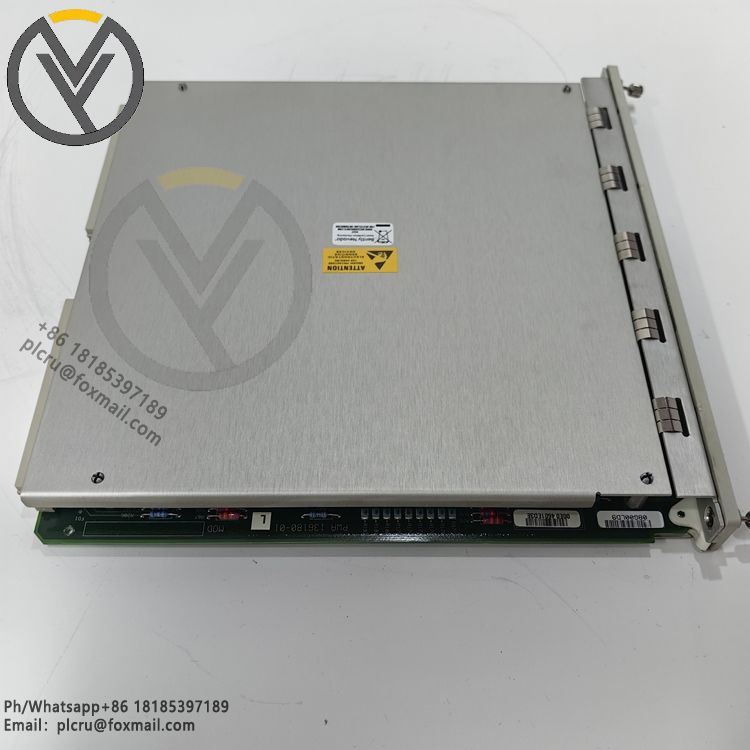

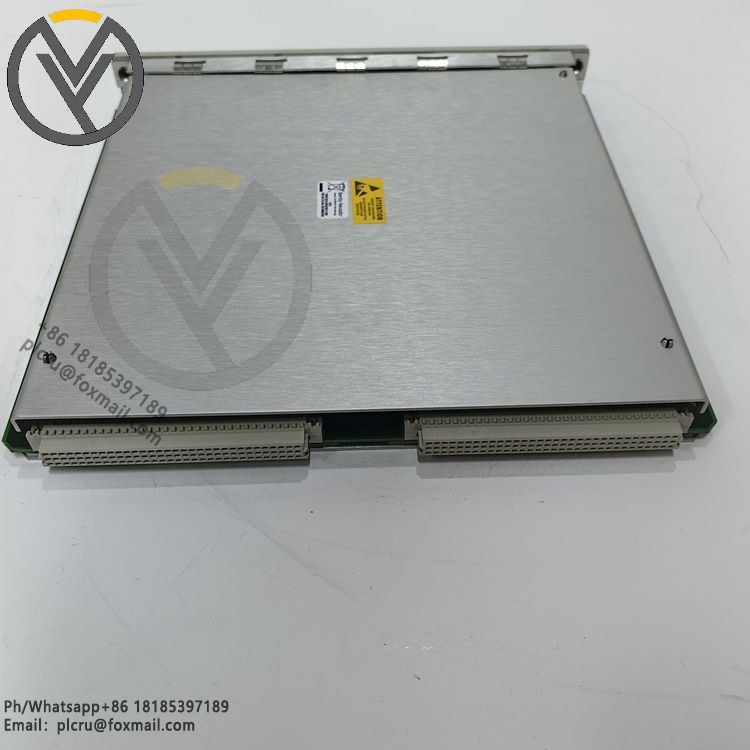

Bently Nevada 3500/92 136180-01 Communications Gateway Module

Bently Nevada 3500/92 136180-01 is a communication gateway module for industrial automation systems. It is mainly used for communication and data transmission, and can transmit the device status to the control system in real time. The relevant introduction is as follows:

Communication capabilities:

Communication interface: Provides Ethernet TCP/IP and serial (RS232/RS422/RS485) communication functions. The Ethernet connection is a 10BASE-T star configuration using an RJ45 connector.

Supported protocols: Supports Modicon Modbus protocol (via serial port communication), Modbus/TCP protocol, and proprietary Bently Nevada communication protocol, and can communicate and collect data with 3500 framework configuration software for Ethernet.

Functional features:

Modbus registry: It has a configurable Modbus registry utility that can communicate through Modbus registers, allowing users to flexibly configure according to their needs.

Versatility: Can be used in conjunction with other Bentley Nevada monitoring modules to provide comprehensive mechanical protection and condition monitoring solutions for industrial automation systems.

Electrical parameters: The working voltage is usually DC24V. It has 8 analog inputs and 8 analog outputs. The input signal supports 0-10VDC, 4-20mA DC, etc. The output signal also supports 0-10VDC, 4-20mA DC, etc.
