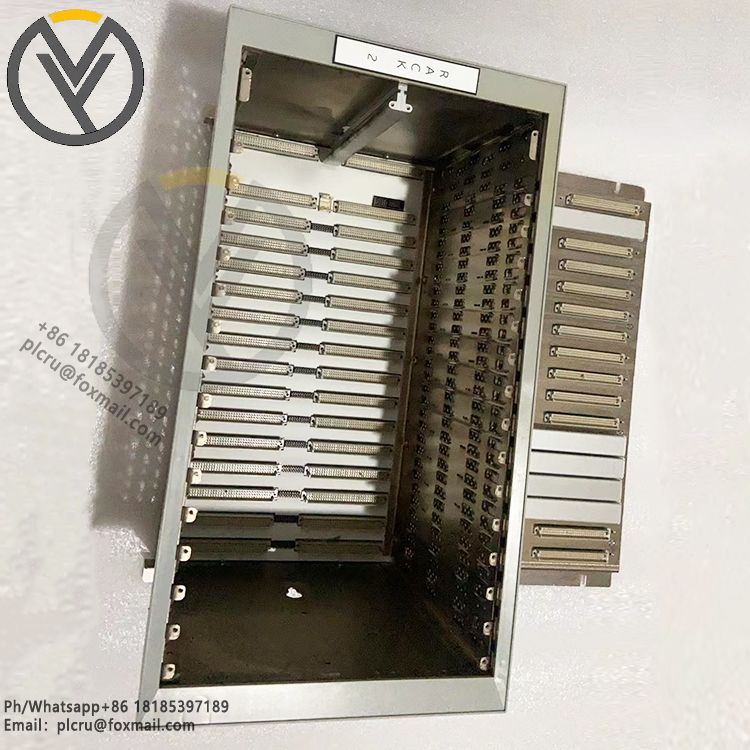

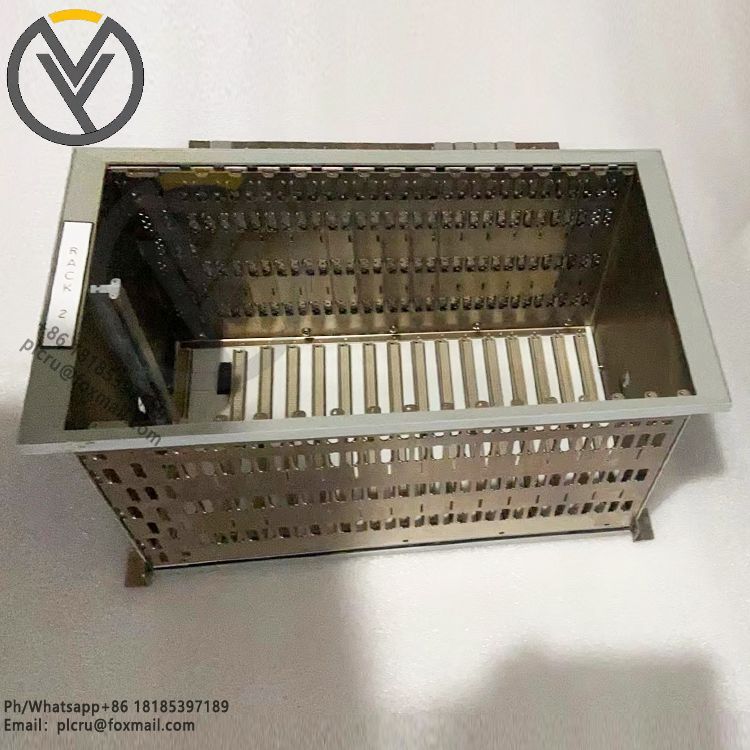

Bently Nevada System Rack 3500/05-01-02-00-00-01

Bently Nevada System Rack 3500/05-01-02-00-00-01 is a device for mechanical condition monitoring systems manufactured by Bently Nevada. The following will be introduced from the dimensions of its specifications, functional features, application scenarios, etc.:

Specifications

Size: It is a 19-inch full-size rack with 14 module slots.

Weight: The shipping weight is 22kg, and the product itself weighs 4.3kg.

Installation method: It supports three methods: rack installation, panel installation, and bulkhead installation.

Functional features

Modular design: Modules can be easily added or removed. Users can flexibly select and combine modules with different functions according to actual monitoring needs, such as vibration monitoring modules, displacement monitoring modules, speed monitoring modules, etc., to meet the monitoring requirements of specific mechanical equipment.

Communication and power distribution: Allows the 3500 series modules to be placed close to each other, allowing them to communicate easily, and allocates the power required for each module to ensure stable communication and normal operation between modules.

Redundant power supply support: Supports redundant power supply configuration, which improves the reliability and stability of the system. When one power supply fails, the other power supply can continue to power the system to ensure the uninterrupted operation of the monitoring system.

Compatible with multiple modules: It can accommodate multiple modules in the 3500 series, such as 3500/15 power supply module, 3500/22M transient data interface (TDI) module, 3500/XX monitoring module, 3500/25 keyphasor® module, 3500/32 relay module, 3500/34 tmr relay module, 3500/92 communication gateway module, etc.

Application scenarios

Mechanical manufacturing industry: used to monitor the operating status of various machine tools, machining centers and other equipment, timely detect abnormal conditions such as vibration and displacement of equipment, prevent equipment failure, and improve processing accuracy and production efficiency.

Petrochemical industry: It can monitor key equipment such as compressors, pumps, fans, etc. in petrochemical production in real time to ensure the safe and stable operation of equipment and avoid production accidents and economic losses caused by equipment failure.

Electric power and energy industry: Applicable to the status monitoring of power equipment such as generators, steam turbines, and wind turbines. By monitoring the vibration, speed, temperature and other parameters of the equipment, early warning and diagnosis of equipment failures can be achieved to ensure reliable power supply of the power system.
