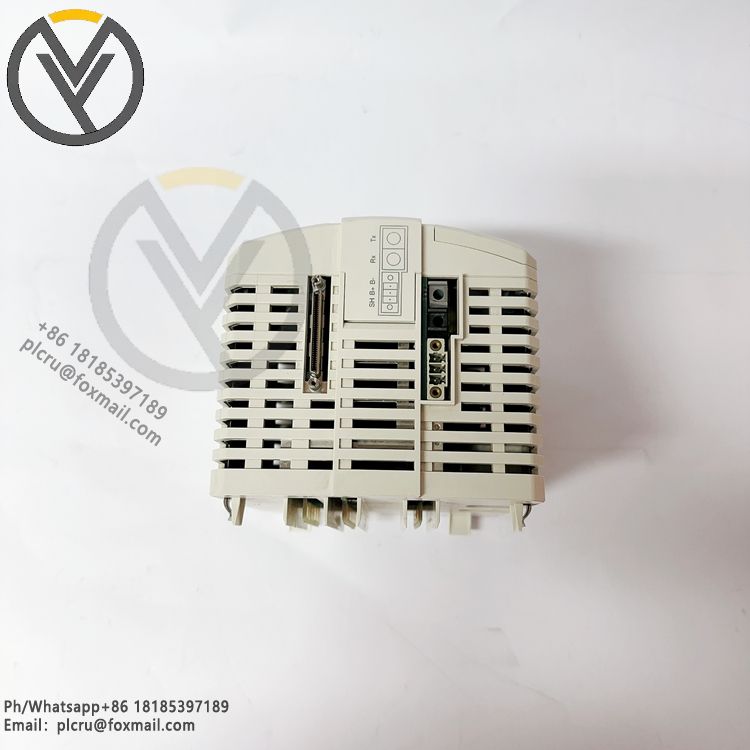

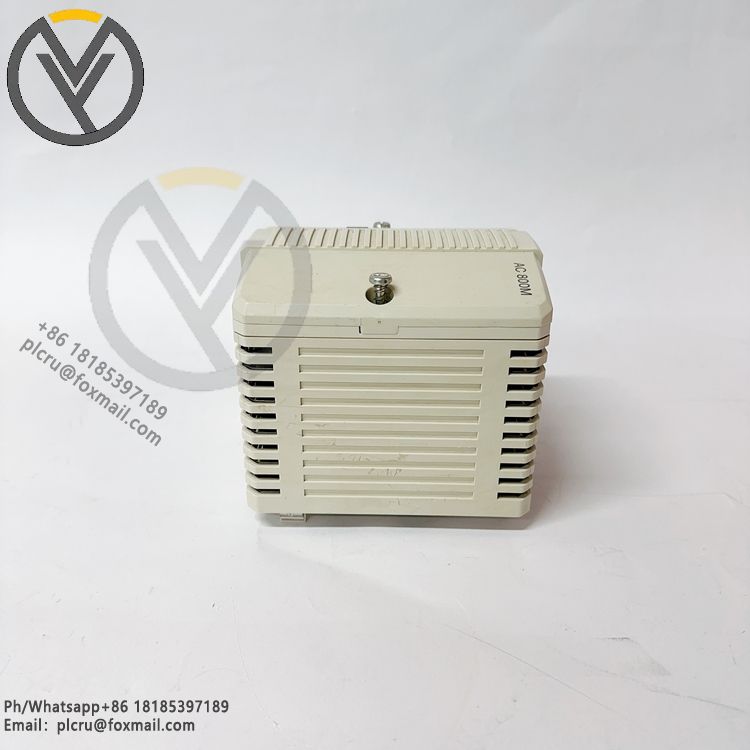

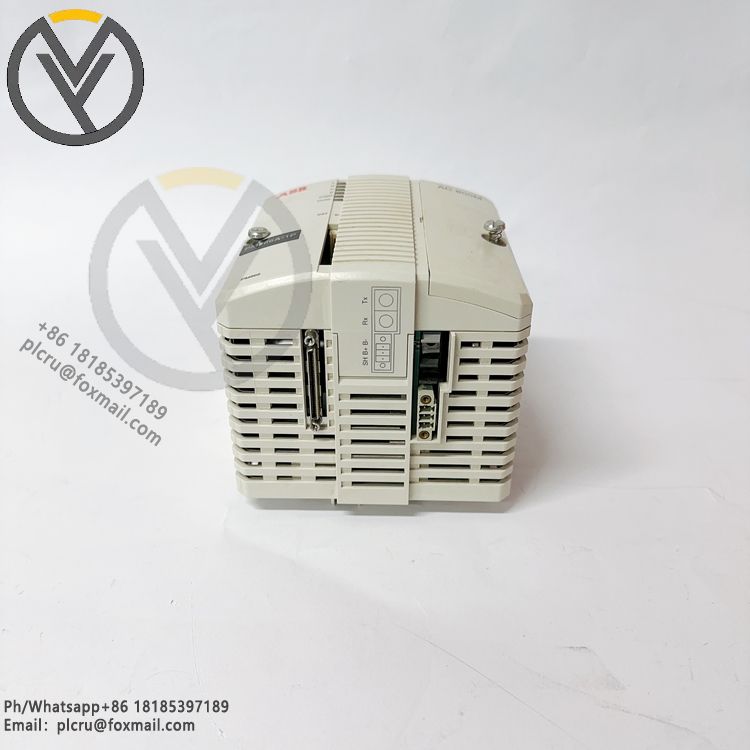

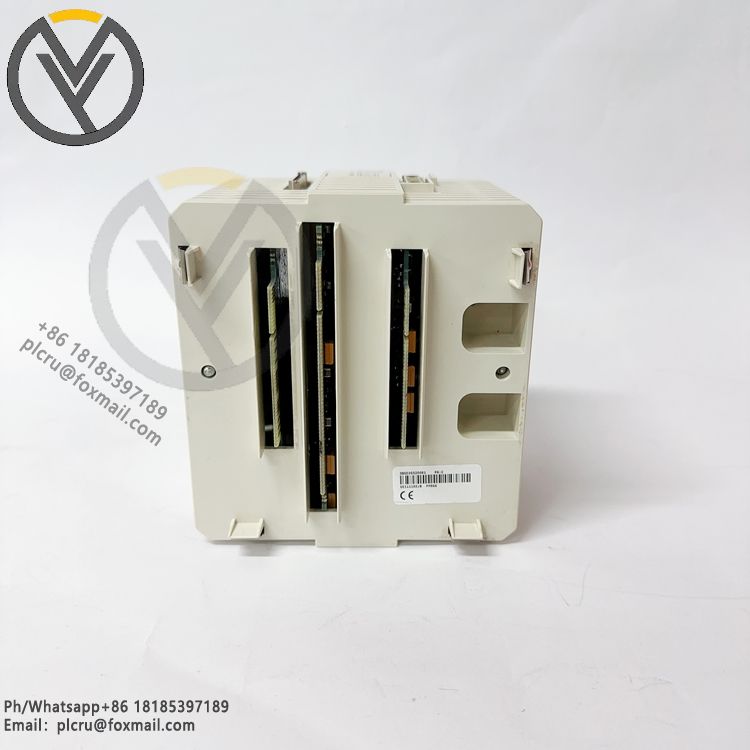

The ABB PM866 (part number 3BSE050200R1) is the core CPU control unit of the ABB AC800M series PLC. With its high-performance processor and rich expansion and communication capabilities, it has become a core component in complex control scenarios in industrial automation, often serving as the core controller for various large-scale automated control systems. The following are its detailed specifications:

Core Technical Parameters

Core Processing and Storage: Processors are available in Intel Atom D2701 or 32-bit RISC versions, both with a clock speed of 2.13GHz; storage configuration supports up to 2GB DDR3 memory and 8GB flash memory, ensuring both rapid computation of complex control algorithms and stable storage of control programs and operating data.

Electrical and Environmental Parameters: Operates on 24VDC power; some versions are compatible with 220V. Operating current is 5A. Operating temperatures vary between versions: 0°C - 55°C and -40°C - 70°C. Storage temperature range is -40°C - 85°C. Protection rating is IP20. Overall weight is approximately 1.1kg.

I/O and Expansion Parameters: Features 16 digital inputs, 16 digital outputs, 16 analog inputs, and 16 analog outputs. Equipped with 8 PCIe Gen2 x1 expansion slots, allowing for flexible expansion of I/O modules to meet industrial needs and extend system functionality.

Core Functional Features:

High Reliability Redundancy: Supports redundant configuration and hot backup. In the event of a module failure, a backup unit can seamlessly take over, preventing control system interruption and significantly improving the fault tolerance and stability of critical industry systems such as power and chemical industries.

Multi-protocol communication adaptation: Compatible with multiple interfaces such as Ethernet, RS-232, and RS-485, while also supporting mainstream industrial communication protocols such as Modbus TCP, PROFIBUS, and PROFINET. It can efficiently interface with various field instruments, actuators, and upper-level monitoring systems to achieve rapid data exchange.

Flexible programming and multi-tasking: Adapted to the IEC 61131-3 standard programming language, covering ladder diagrams, function block diagrams, and structured text, and also compatible with ABB's proprietary Control Builder M programming environment; it possesses powerful multi-tasking capabilities, capable of processing multiple control tasks in parallel, adapting to the synchronous control requirements of complex industrial processes.

Typical application scenarios: As a core control unit, this module is widely used in energy, metallurgy, water treatment, and other fields. For example, in the thermal power and hydropower industries, it is used for parameter control and process monitoring of equipment such as steam turbines and boilers; in the metallurgical and steel manufacturing fields, it is suitable for the automated control of steelmaking and rolling production lines; it is also applicable to the automation systems of industries such as water supply, sewage treatment, papermaking, and glass manufacturing, and is responsible for coordinating the collaborative operation and parameter optimization of various equipment.
