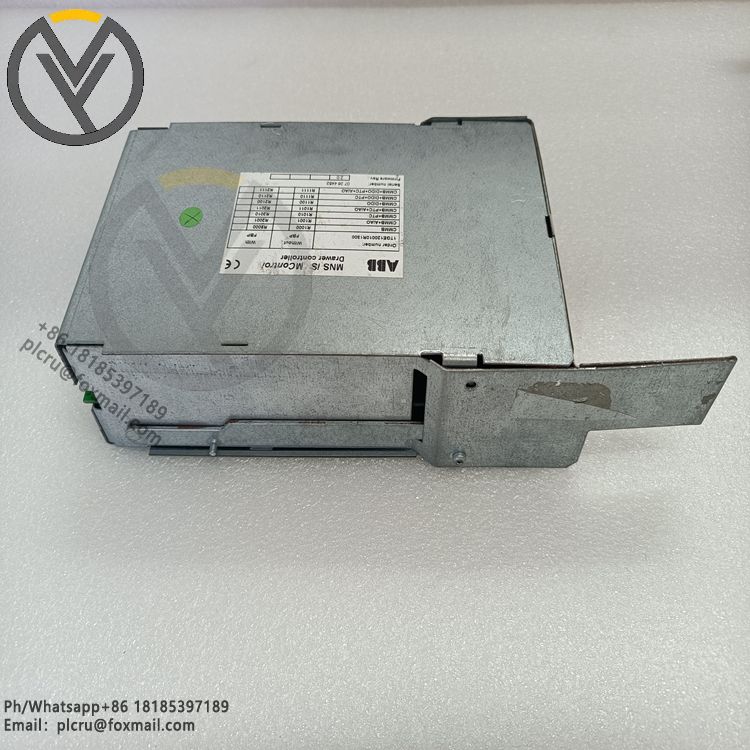

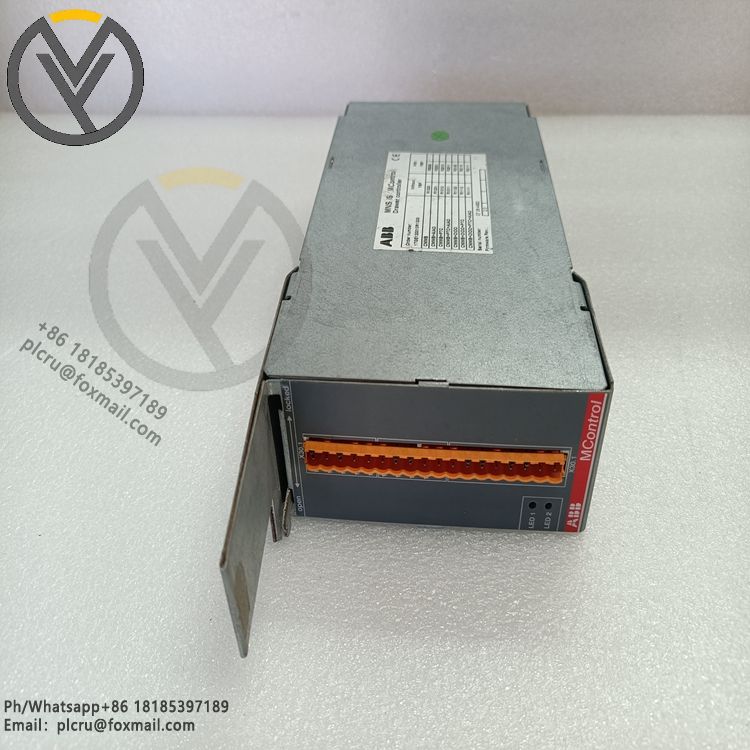

ABB 1TGE120010R1300 Control Protection Motor

The ABB 1TGE120010R1300 is a high-performance control and protection module designed primarily for motor control and protection in industrial automation systems. The following is a detailed introduction:

Basic Parameters:

Rated voltage: 24V DC.

Input current: 100mA.

Communication ports: RS-232, RS-485.

Operating temperature range: -10°C to +60°C.

Weight: 0.2kg.

Protection rating: IP54.

Dimensions: Net depth 260mm, net height 125mm, net width 53mm.

Features:

Intelligent control: Supports programmable functions, allowing users to adjust motor speed, torque, and power to meet specific needs.

Multiple protection functions: Provides protection against overcurrent, overvoltage, undervoltage, phase loss, overload, short circuit, and ground fault, ensuring the safe operation of motors and related equipment. Powerful communication capabilities: Supporting multiple communication protocols such as Modbus, Profibus, Ethernet/IP, and IEC 61850, it seamlessly integrates with PLCs, DCSs, and energy management systems, enabling remote monitoring, control, and data analysis.

Flexible installation: Supporting DIN rail, panel mounting, or custom enclosure formats, it facilitates installation in diverse industrial environments.

Applications: Widely used in motor control and protection scenarios across various industrial and commercial sectors, such as control and protection of motors such as pumps, fans, compressors, conveyors, and mixers in manufacturing, as well as in machine tool manufacturing, logistics and warehousing, and municipal engineering.
