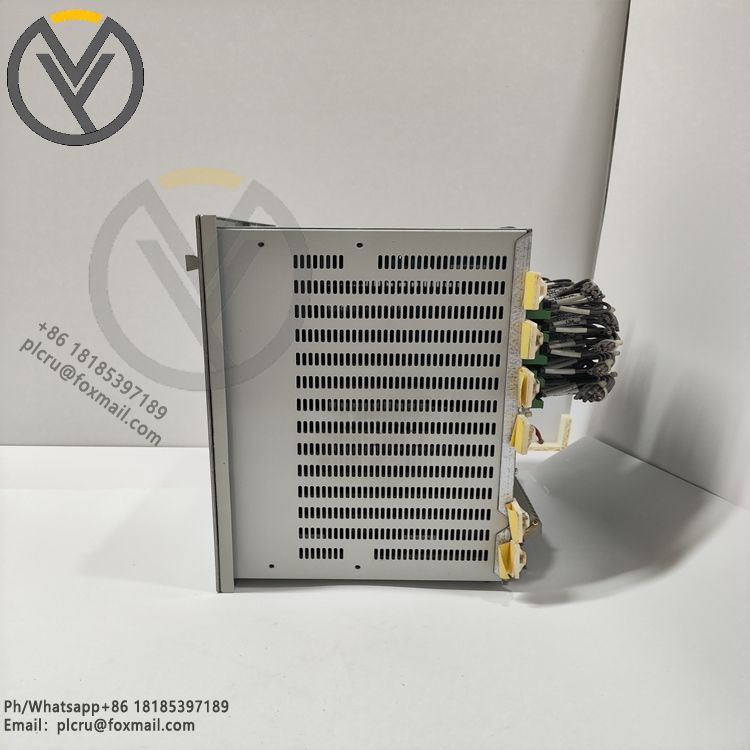

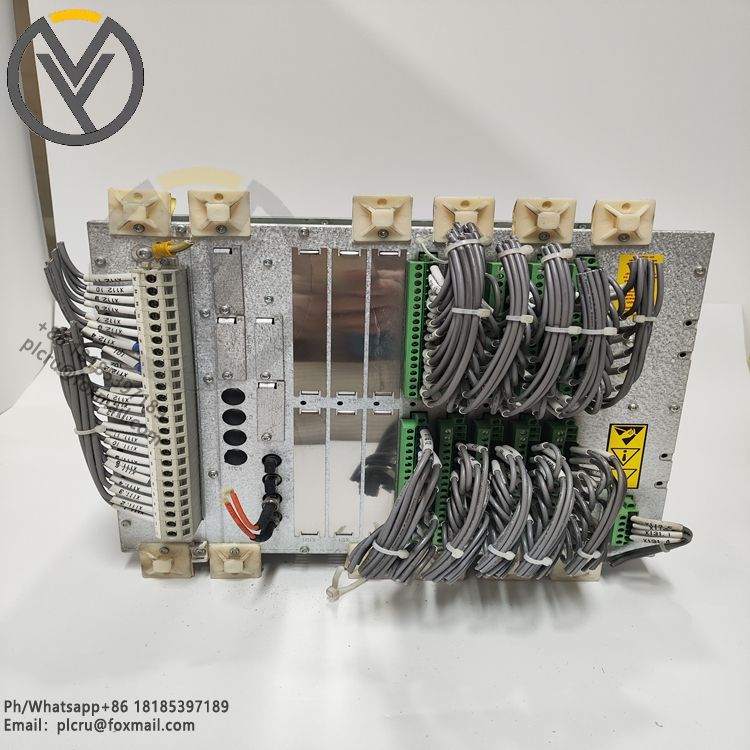

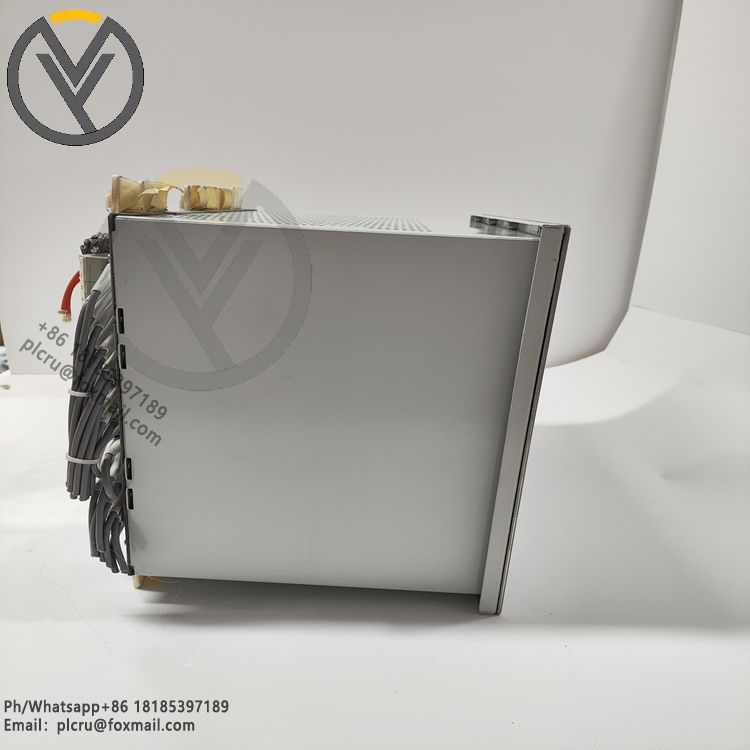

ABB REC670 1MRK002814-AB Bay Control Device
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The ABB REC670 1MRK002814-AB bay control device, part of the Relion® series, is
The ABB REC670 1MRK002814-AB bay control device, part of the Relion® series, is primarily used for controlling, protecting, and monitoring various bay types in power systems. The following is a detailed description:
Features
Multiple protection functions: It offers instantaneous phase and ground overcurrent protection, four-stage directional or non-directional time-delay phase and ground overcurrent protection, thermal overload protection, and two-stage undervoltage and overvoltage protection, providing comprehensive protection for power equipment.
Flexible control modes: It enables remote (SCADA station-level) control via IEC 61850-8-1 station bus data communication, as well as local operation via the device's front-panel human-machine interface (HMI). A single measurement, control, and protection device can control a single electrical bay or multiple bays simultaneously.
Multiple communication protocol support: Support for IEC 61850-8-1 Ed1 or Ed2, DNP3, and other protocols facilitates communication and integration with other devices or systems, enabling rapid data transmission and interaction. Redundancy: Built-in PRP (Parallel Redundancy Protocol) functionality supports star or ring bus architectures, improving system reliability and stability.
Synchronism Check: The synchro-check function blocks fault recording and fault closing during a single system fault. It also performs independent post-fault analysis to ensure the circuit breaker closes at the appropriate time.
Technical Specifications
Rated Voltage: 690V.
Rated Current: 33A.
Operating Frequency: 50/60Hz.
Protection Rating: IP40.
Operating Temperature Range: -40°C to +70°C.
Applications
Substation Automation Systems: Used to monitor and control bay equipment within substations, enabling automated substation management.
High-Voltage Direct Current (HVDC) Systems: Particularly suitable for series-compensated or HVDC power systems, ensuring stable and secure power transmission.
Industrial Automation: Used for the protection, control, and monitoring of industrial power systems, ensuring reliable operation.
