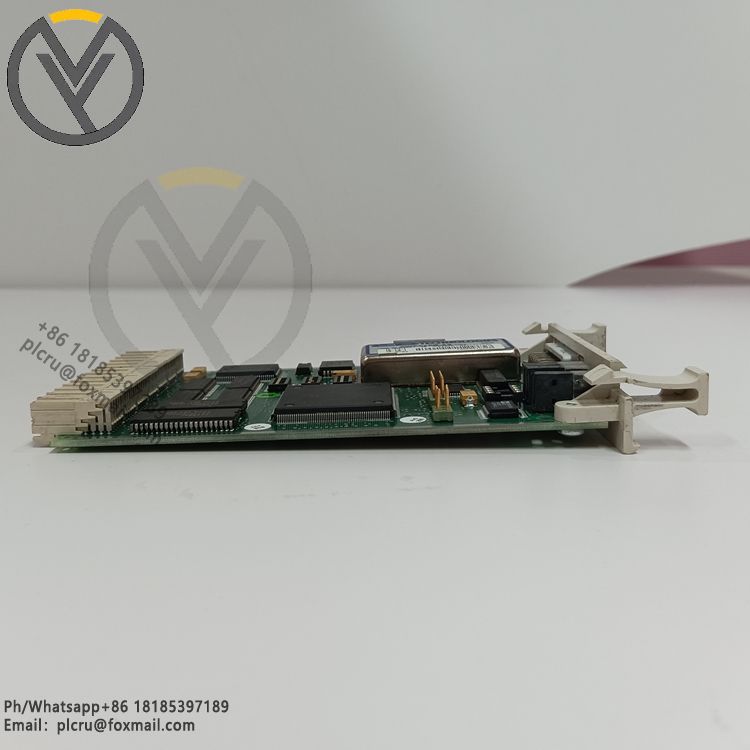

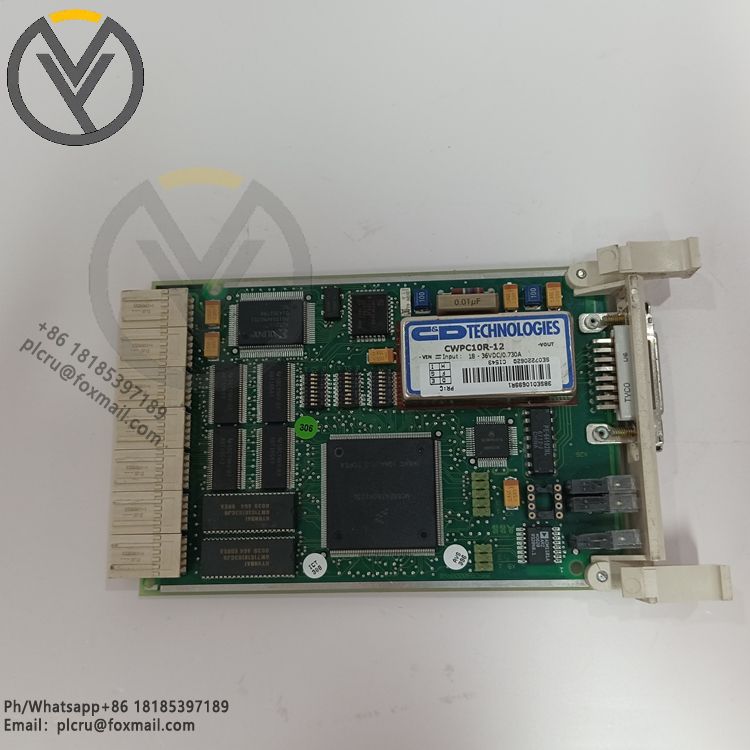

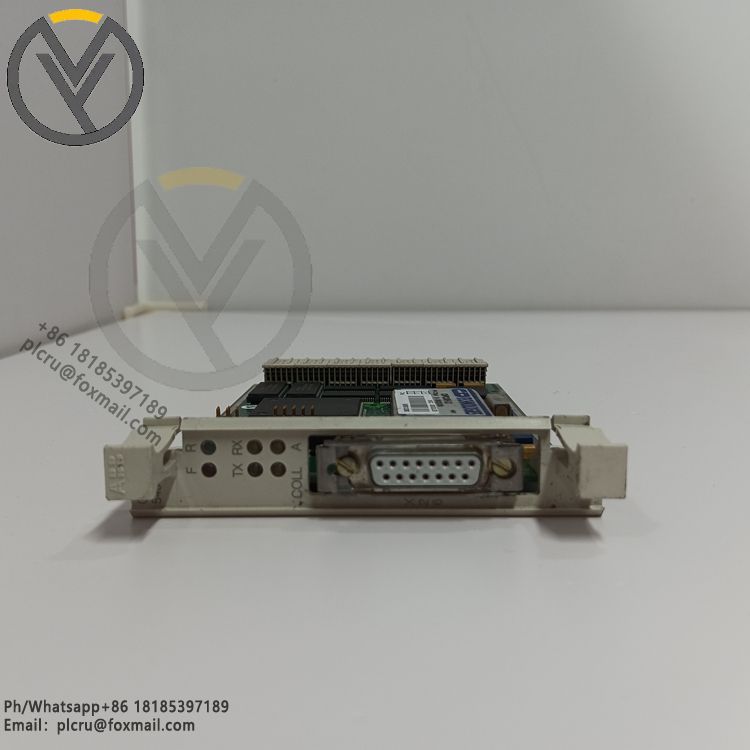

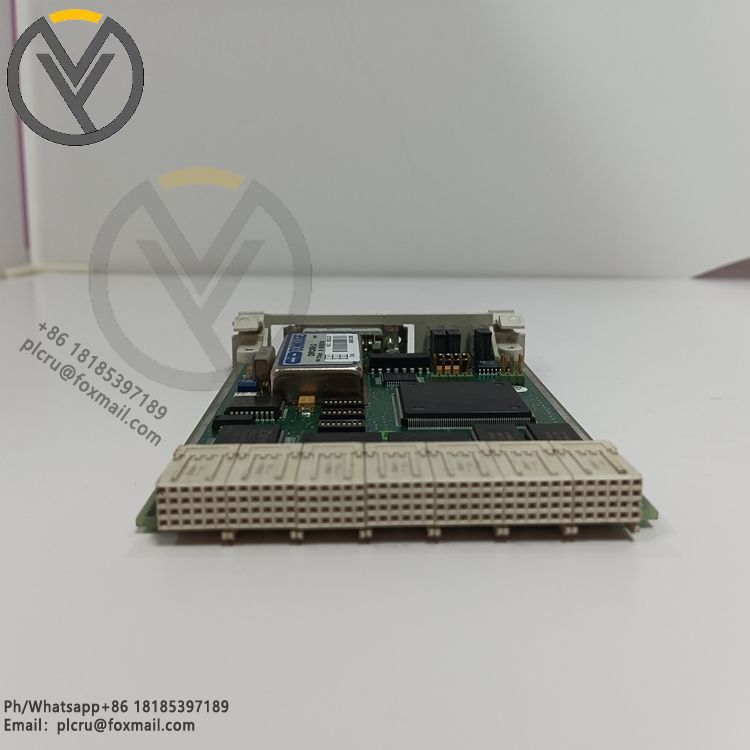

ABB SDCS-CON-2-COAAT 3ADT220090R2 Communication Module

ABB SDCS-CON-2-COAAT 3ADT220090R2 is a communication module used in the field of industrial automation. It is often used with ABB's DC drives and other equipment. The following is its related introduction:

Functional features:

Multiple protocol support: Supports communication protocols such as Modbus and Ethernet/IP, and can interact with a variety of devices that comply with the corresponding protocols, making it easy to integrate into different industrial control systems.

High-precision control: As an advanced industrial control module, it can achieve precise control and can be seamlessly integrated into various industrial systems to ensure smooth operation of the system and improve production efficiency.

Strong signal processing capability: Built-in I/O board with multiple terminals, can connect to DC speed motors, encoders and other devices, can process analog input and output, digital input and output and other signals, such as X3 terminal block can be connected to DC speed motors, and X5 terminal block is the encoder input terminal.

Technical parameters:

Working voltage: Supports 120V AC or 24V DC.

Output frequency: Up to 10kHz.

Input current: less than 10mA.

Power consumption: maximum 10W.

Dimensions: 120mm×84mm×64mm.

Weight: about 0.5kg.

Application scenarios: Mainly used in DC motor control systems such as ABB DCS500 series. It can be used in metallurgy, papermaking, textile and other industries to accurately control and monitor the speed, current and other parameters of DC motors to ensure stable and efficient operation of the production process.
