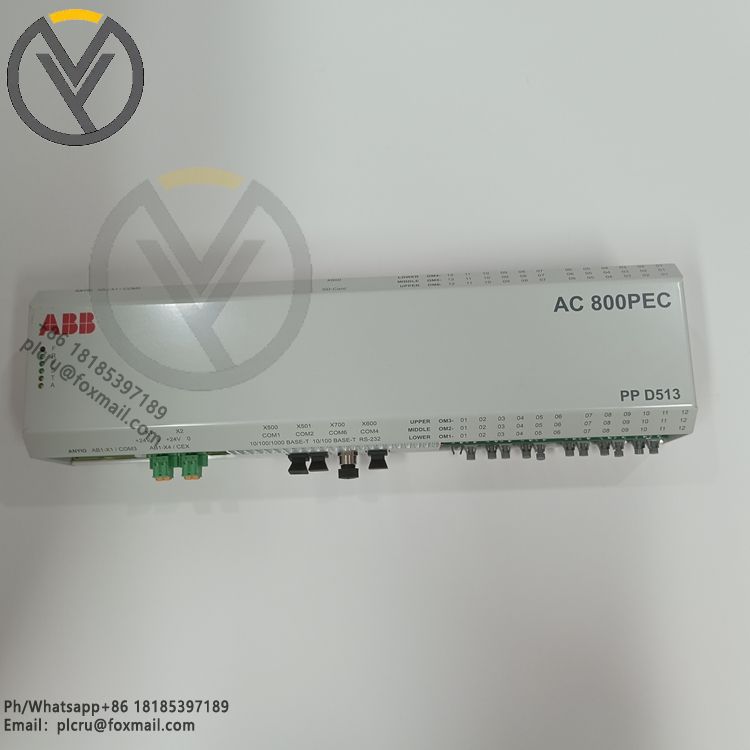

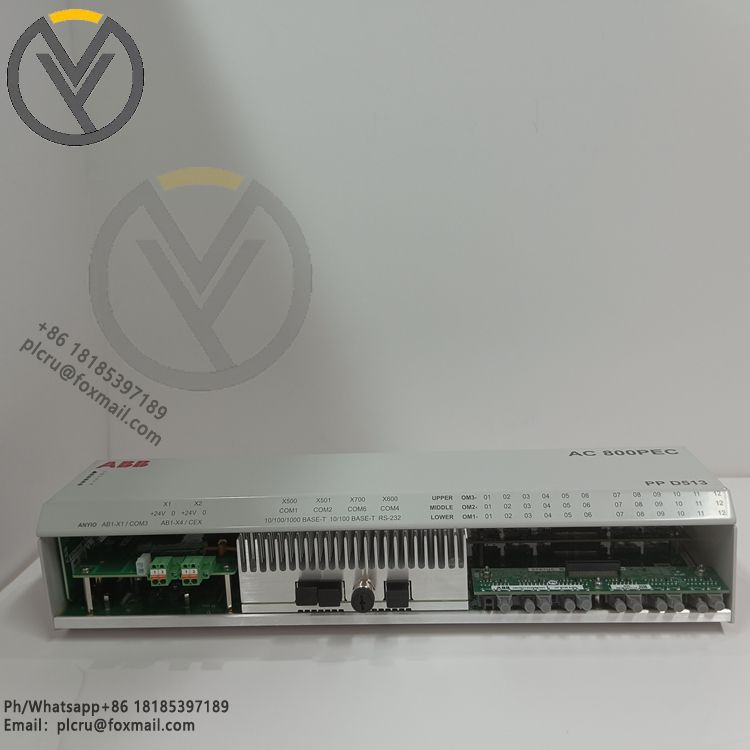

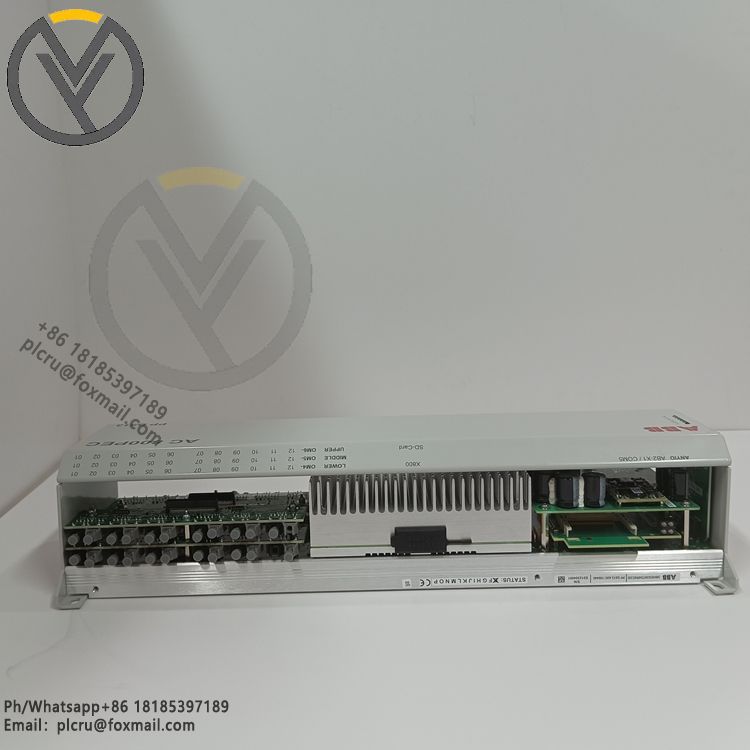

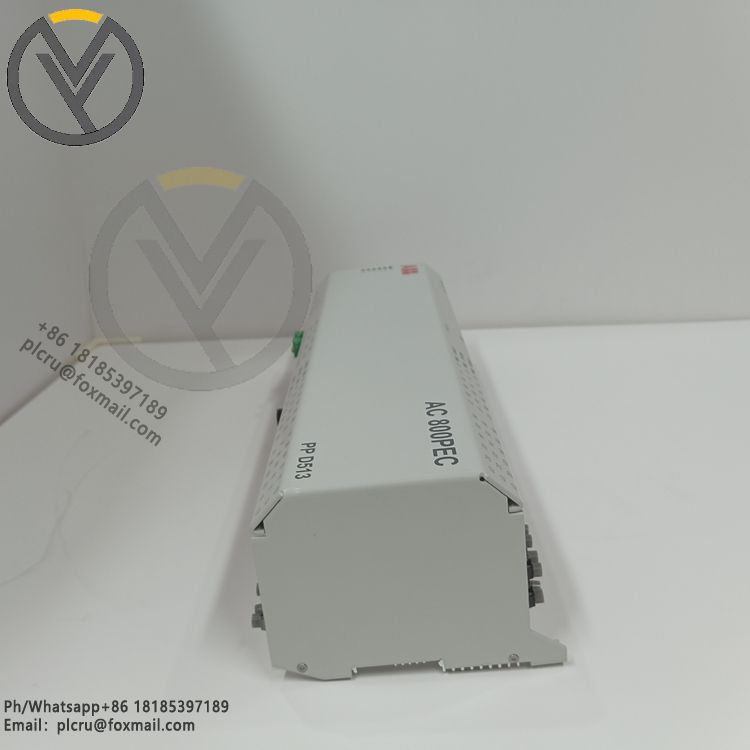

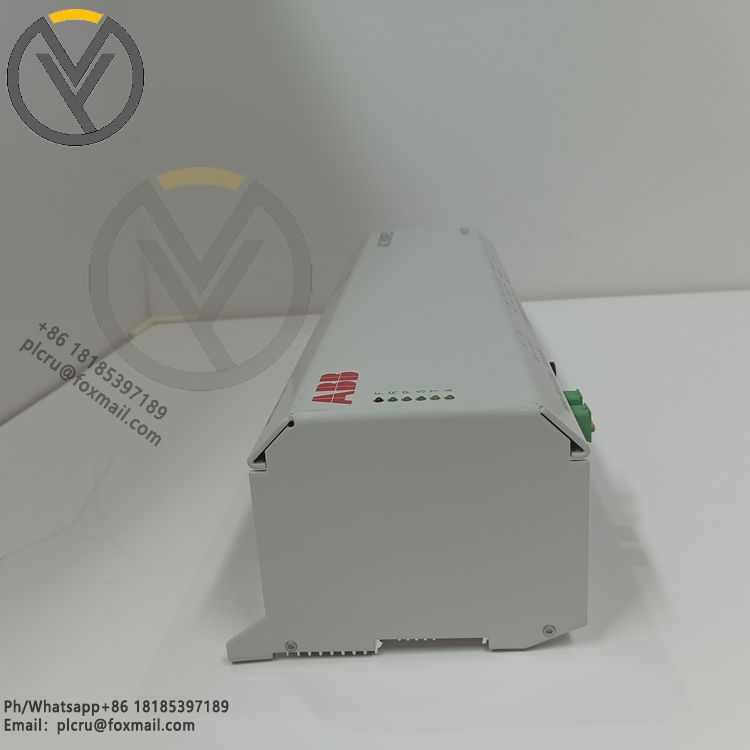

ABB PPD513AOC-100440 3BHE039724R0C3D AC800PEC Excitation Controller

Rich communication interfaces: It has two Ethernet ports, RS-232/RS-422 serial ports, and on-board AnyIO ports for various fieldbus types. It can be connected to ABB's I/O system through the optical S800 Modulus bus, and to ABB's communication modules through the communication expansion bus (CEX). It also supports third-party Anybus-S fieldbus modules and can be seamlessly integrated with other control devices and systems.

High-speed control capability: Equipped with extremely fast analog and digital process I/O, with a typical cycle time of 25μs, it is suitable for power electronics applications with strict requirements on speed and accuracy.

Versatile features: It can handle both high-speed and slow processes, from the fast control required by power electronics to the slower and more stable control required by cooling circuits and monitoring systems.

Convenient configuration and programming: Configuration and programming using ABB's mature programming tool Control Builder M, as well as Real Time Workshop® MATLAB®/Simulink®, helps develop complex control algorithms and integrate the controller into larger automation projects.

Modular design: Supports up to 36 I/O modules with bidirectional fiber optic PowerLink connections, which can be flexibly configured according to the specific I/O needs of the application.

Open system architecture: As part of the AC800 PEC system, it has an open design and provides standard interfaces for modules with customized designs and functions.

User-friendly monitoring: Allows monitoring using Simulink external mode, which improves the usability and accessibility of the controller to operators and engineers.
